- 600 pound capacity in 10 pound increments

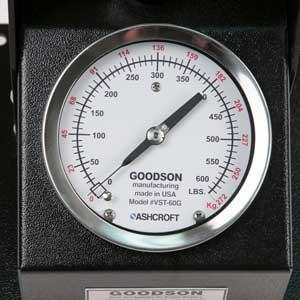

- 5" diameter Ashcroft quality analog pressure gauge reads in both SAE and Metric

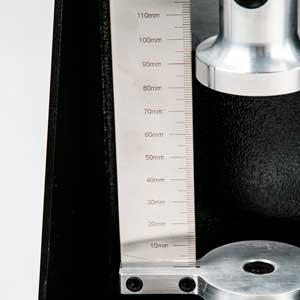

- Integral vertical height scale that moves 180° right to left to show inches on one side and millimeters on the other
- Spring platform that handles springs up to 2" diameter x 4.5" overall height
- Vertical height adjustment in 1/2" increments
- Adjustable pressing anvil for fine-tuning open and closed pressures for height measurement
- T-Handle conforms to the operator's grip for firm control
- Heavy duty powder coated texture finish
- Sealed hydraulic load cell
- Over-center cam action that holds spring at the desired height
- Rubber protective boot to keep the mechanism debris-free
- Base features four 5/16" mounting holes
- UNIT WEIGHT: 19-1/2 lbs.
- FOOTPRINT: 8-1/2" Square Base

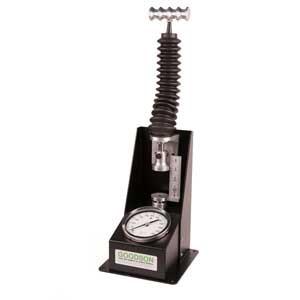

- HEIGHT: 28" Overall Height with handle fully extended
